Powered Elevator Individual Stage Kits

$129.00 – $175.00

Select option to view product code

Clear selections

Extrusion is not included in these kits. Looking to mix and match AndyMark Powered Elevator parts to create the mechanism of your dreams? Then this is the page for you. Each stage has a unique u...Read More

0 reviews

Write a Review
Add to Wish List

View Full Details

Product Overview

Extrusion is not included in these kits.

Looking to mix and match AndyMark Powered Elevator parts to create the mechanism of your dreams? Then this is the page for you. Each stage has a unique use when building a Powered Elevator.

  • Carriage Stages are the innermost stage of most elevators and will have the most travel up and down of all stages.
  • Carriage Support Stages surround a Carriage Stage.
  • Add-on Stages increase the total range of your elevator and slot between a Carriage Support Stage and Outer Stage.
  • Outer Stages are the outermost stage of your elevator.

For more information on how to build and use each stage, check out the Powered Elevator Assembly Guide.

Included Items:

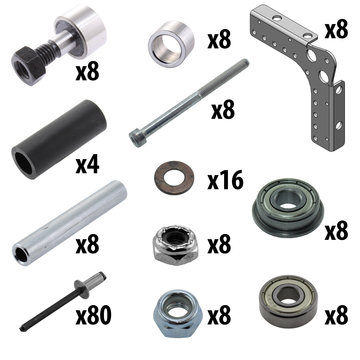

Powered Elevator Carriage Stage Kit (am-5546):
  • 16 - 8 mm Flat Washer (am-1009)
  • 8 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
  • 8 - 10-32 Nylock Jam Nut (am-1063)
  • 80 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
  • 8 - M8 x 1.25 Nylock Nut (am-1509)
  • 8 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
  • 4 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
  • 8 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
  • 8 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
  • 8 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
  • 8 - M8 Cam Follower (am-5545)
  • 8 - Powered Elevator Internal Corner Bracket (am-5556)

Powered Elevator Carriage Support Stage Kit (am-5547):
  • 8 - 8 mm Flat Washer (am-1009)
  • 8 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
  • 8 - 10-32 Nylock Jam Nut (am-1063)
  • 72 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
  • 4 - M8 x 1.25 Nylock Nut (am-1509)
  • 4 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
  • 2 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
  • 4 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
  • 8 - 0.192 in. ID 0.375 in. OD 1.000 in. Long Aluminum Spacer (am-3876)
  • 4 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
  • 8 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
  • 4 - M8 Cam Follower (am-5545)
  • 4 - Powered Elevator Internal Corner Bracket (am-5556)
  • 4 - Powered Elevator Passthrough Corner Bracket (am-5557)
Powered Elevator Add-on Stage Kit (am-5548):
  • 16 - 8 mm Flat Washer (am-1009)
  • 4 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
  • 12 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
  • 8 - 10-32 Nylock Jam Nut (am-1063)
  • 60 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
  • 8 - M8 x 1.25 Nylock Nut (am-1509)
  • 8 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
  • 4 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
  • 8 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
  • 4 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
  • 8 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
  • 8 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
  • 8 - M8 Cam Follower (am-5545)
  • 4 - Powered Elevator Internal Corner Bracket (am-5556)
  • 2 - Powered Elevator External Corner Bracket, Side A (am-5558_A)
  • 2 - Powered Elevator External Corner Bracket, Side B (am-5558_B)
Powered Elevator Outer Stage Kit (am-5549):
  • 8 - 8 mm Flat Washer (am-1009)
  • 4 - 10-32 x 1.5 in. Socket Head Cap Screw (am-1014)
  • 12 - 10-32 x 2.5 in. Socket Head Cap Screw (am-1024)
  • 8 - 10-32 Nylock Jam Nut (am-1063)
  • 52 - 3/16 in. Diameter 0.126 to 0.25 in. Grip Steel Rivet (am-1226)
  • 4 - M8 x 1.25 Nylock Nut (am-1509)
  • 4 - 0.192 in. ID 0.313 in. OD 2.000 in. Long Aluminum Spacer (am-1582)
  • 2 - 0.330 in. ID 0.470 in. OD 1.180 in. Long Nylon Spacer (am-1610)
  • 4 - 0.319 in. ID 0.438 in. OD 0.313 in. Long Aluminum Spacer (am-1678)
  • 4 - 10-32 Threaded 1 in. Long 0.375 in. Dia. Standoff (am-1701)
  • 8 - 0.192 in. ID 0.375 in. OD 1.000 in. Long Aluminum Spacer (am-3876)
  • 4 - 8 mm ID 22 mm OD Shielded Bearing (608ZZ) (am-4456)
  • 8 - 5 mm ID 15 mm OD Shielded Flanged Bearing (F695ZZ) (am-5469)
  • 4 - M8 Cam Follower (am-5545)
  • 4 - Powered Elevator Passthrough Corner Bracket (am-5557)
  • 2 - Powered Elevator External Corner Bracket, Side A (am-5558_A)
  • 2 - Powered Elevator External Corner Bracket, Side B (am-5558_B)

---------------------------------------------------------------------------------------------------------

Specifications

  • Material: Aluminum

Documents

Don't see what you need?
See_all_our_guides,_drawings_and_CAD_files_here

Returns

Returns are accepted within 30 days of purchase.
View our return policy here.
